• GA19 HHO Automotive Fuel Cell


    Technical Specifications:
    Length: 4.5" (fittings included)
    Width: 4.5"
    Height: 8"
    Power Requirements: 12v-14v / 20-60 Amp

    Plates: 19
    Gaskets: 20
    Fittings/Plumbing: 4 X 3/8" NPT Elbows

    * Can use 1/2" Barbed fittings if needed by the user. 3/8" NPT X 1/2" Barbed

      Price: $95.00

    To make a purchase, Click Here

    The GA19 Cell is our automotive cell, incorporating maximum efficiency, for the power requirements under operating conditions. This cell packs a punch, incorporating 19 plates for increased performance with less energy. The compact, size makes this cell ideal for any automotive requirement from small compact cars to heavy duty pickups.

    There are 2 Cell blocks in the GA19, which each cell block is capable of operating between 5 amps @ 12-14v through 25-30 amp @ 12-14v. Production range for the GA19 is is 2 LPM to 4+ LPM.

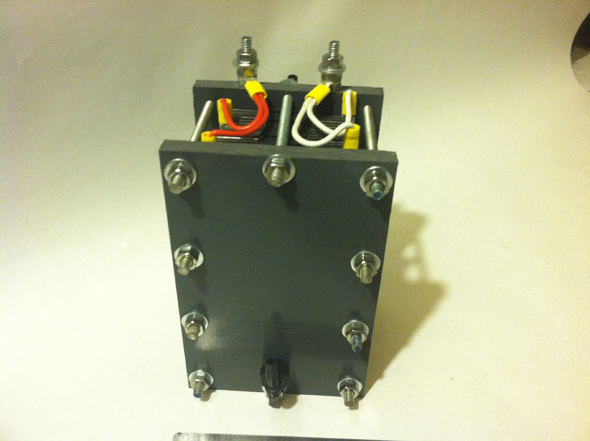

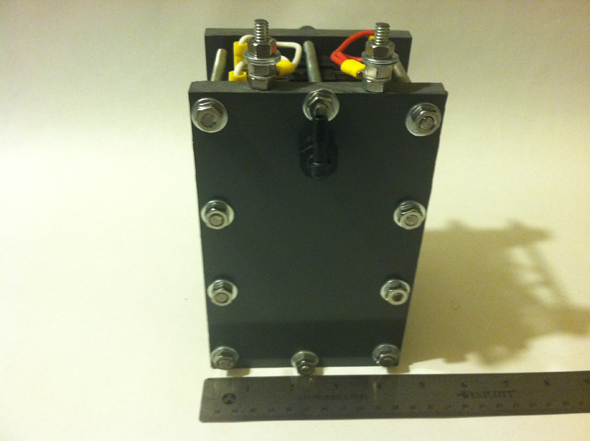

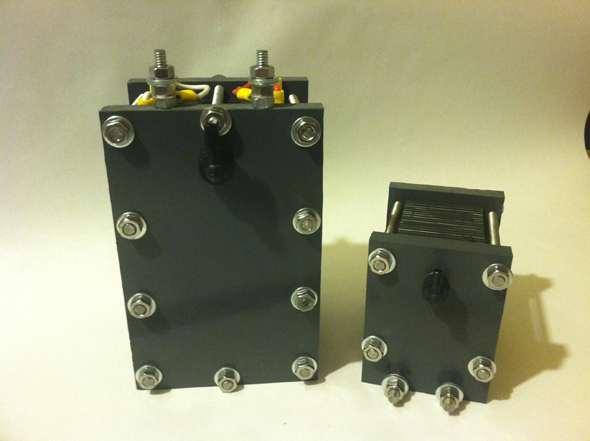

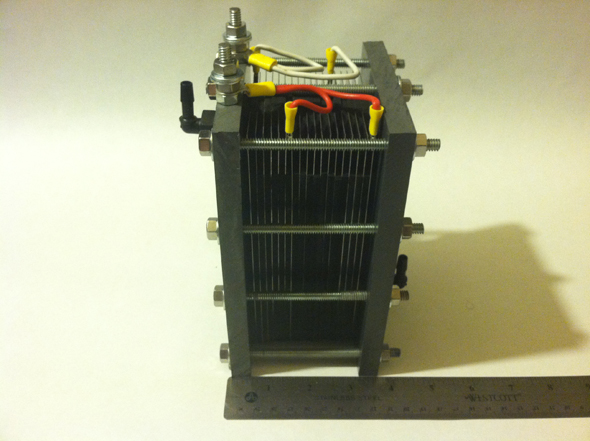

    The GA19 Cell comes pre-assembled as seen in the images on this page.



    ***Free Shipping Within the United States***


    Click for Larger Images
